Conservatory awnings are external or internal textile shading systems designed specifically for glass roofs, conservatories and terrace roofs. For conservatories with custom shapes (triangles, trapezoids or hip roofs), WAREMA offers tailor-made solutions with its Climara awnings.

Operating Principle and Components
Conservatory awnings consist of an awning fabric, side guide rails and a drop profile. They are motor-driven and installed above or below the glass roof.
- â‘ Cover panel
- â‘¡ Shaft
- â‘¢ Awning fabric
- â‘£ Reinforcement profile
- ⑤ Front rail
- â‘¥ Guide rail
All aluminium parts can be powder-coated in colours from the WAREMA Colour World. Illustration: WAREMA conservatory awning Climara W20 with square valance.
Climara conservatory awnings | Over-glass awnings

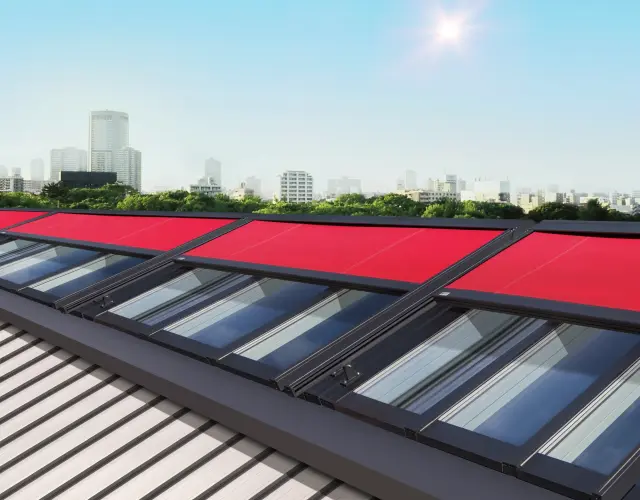

The external conservatory awnings are mounted on the roof of the conservatory and deliver particularly effective indoor climate control, absorbing most of the sun's rays before they reach the glass.
- maximum order width 4000 mm
- mamimum order length 5000 mm
- Maximum order area 10 m²
- External conservatory awning for special shapes
- Combinable with W19 VUNO or W20 VUNO
- maximum order width 6000 mm
- mamimum order length 4500 mm
- Maximum order area 24 m²
- External conservatory awning with offset guide rail
- For hipped or sloped conservatories or pergolas
- maximum order width 6000 mm
- mamimum order length 6000 mm
- Maximum order area 30 m²
- External conservatory awning for large areas
- With optimised counter-pull system
- maximum order width 6500 mm
- mamimum order length 6000 mm
- Maximum order area 30 m²
- External conservatory awning with secudrive ® technology
- Round or alternatively rectangular cover panel for a perfect facade design
- Areas up to 30 m²
Climara conservatory awnings | Under-glass
Under-glass Climara solutions are fitted underneath your patio roof. The internal installation protects the fabric of your conservatory awning excellently against soiling and the effects of weather.
- maximum order width 6000 mm
- mamimum order length 6000 mm
- Maximum order area 30 m²
- Internal conservatory awning with back-pull principle
- The optional valance roller blind with crank operation offers additional vertical visual privacy and sun shading
- maximum order width 6500 mm
- mamimum order length 6000 mm
- Maximum order area 30 m²
- Under-glass conservatory awning with secudrive ® guidance
- Round or alternatively rectangular cover panel for a matching facade design
- Optional valance roller blind and integrated lighting
- maximum order width 6500 mm
- mamimum order length 6000 mm
- Maximum order area 30 m²
- Under-glass conservatory awning with secudrive ® guidance
- Two fabric qualities with two cover panels run in one guide rail
- maximum order width 6500 mm
- mamimum order length 12000 mm
- Maximum order area 60 m²
- Joined guide rails allow extremely long projections with small cover panels
- Internal conservatory awning with secudrive ® guidance
Attractive design with matching sun shading solutions
Even if you’ve opted for unusual architecture, you can still use fully automated sun shading. Special solutions are required for glass surfaces of unusual forms, such as triangular, trapezoidal and hipped roofs. Here too, WAREMA has the ideal awnings.
Since the sun doesn’t always shine down from above, regardless of the conservatory’s architecture, it is recommended to combine products to create external shading on the side walls. This keeps the heat outside while still enabling you to enjoy the daylight in a comfortable atmosphere. External venetian blinds and window awnings are the ideal solution. And don't forget the insect screens and pollen protection.

Restaurant industry solutions
The installation of a high-grade sun shading and weather protection system is often indispensable when making the best possible use of open spaces. Find out which solutions are particularly suitable here and get in touch with our experts.
